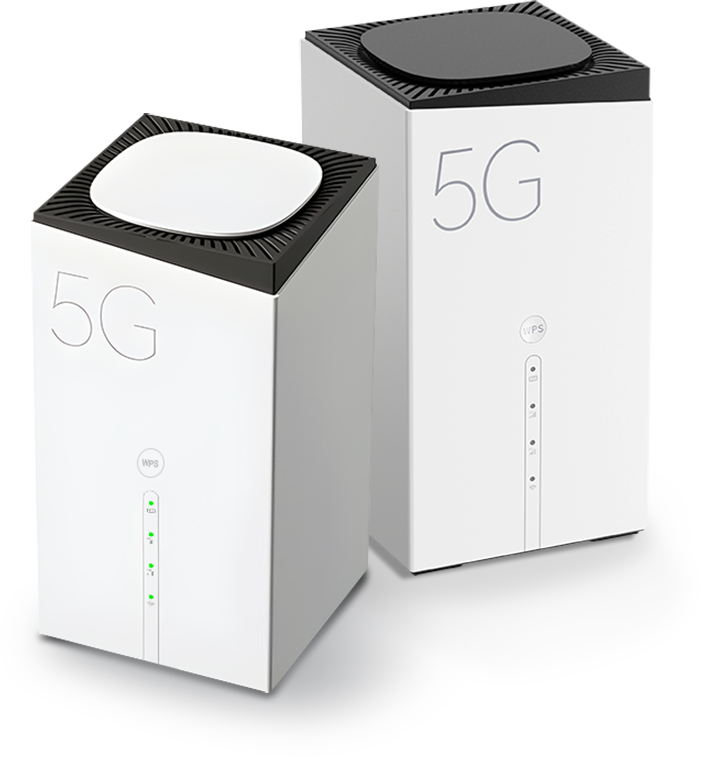

5G Wireless Router KT-R2A

Get a full signal in every room

MTK T750 Chip | High Speed Wi-Fi6 | 2.5G Port, Fast Internet Access

handheld pda

What makes Kingtop CPE different?




Surging power from the core

Equipped with MTK T750, a quad-core ARM Cortex A55 architecture chip, using 7nm process technology, supporting multi-operator aggregation technology, the theoretical peak increase to 4.67Gbps.

Rocket Speed

4.67 Gbps theoretical download rate

NSA/SA

5G dual-mode network, 4G compatible

Sub-6G

Supports mainstream operator bands

ISP

Supports mainstream operator certification



Blazing-fast speeds rate up to 3.6Gbps

MTK WiFi chips, support AX3600 and AX1800, also support 128 users at the same time. The speed can reach up to 3.6Gbps.

Talk to us >

Beamforming technology for all-weather stability

4pcs 2.4/5GHz 5dBi high gain antennas, forming a 4-antenna array, 8pcs cellular antennas, superimposed MU-MIMO, beam forming, higher rates, stronger through-wall performance.


Low power consumption & quieter

*Integrated MediaTek 5G ultra-safe power enhancement for lower energy loss.
*Intelligent antenna beam forming technology, network speed is always smooth and stable.
*Unique heat dissipation design disperses heat, lowers case temperature and reduces noise.

Rich scenarios to enjoy network

Product Technical Specifications

Model
KT-R2A
Platform
Chipset : MTKT750
Memory: 1GB RAM + 1GB ROM
WIFI : MT7915+MT7975
WIFI Speed rate
AX3600:5 GHz: 2402 Mbps , 2.4 GHz: 1148 Mbps
AX1800:5 GHz: 1201 Mbps , 2.4 GHz: 574 Mbps
WIFI Band
Bands : 2.4G, 5.8G, DBSC
Protocal : 802.11 a/b/g/n/ac/ax,wifi6
Throughput:
NSA:n1/ 3/ 5*/ 7/ 8/ 20/ 28/ 38/ 40/ 41/ 71*/ 77/ 78
SA:n1/ 3/ 5*/ 7/ 8/ 20/ 28/ 38/ 40/ 41/ 71*/ 77/ 78
FDD: B1/ 3/ 5*/ 7/ 8/ 20/ 28/ 32/ 71*
TDD: B38/ 40/ 41/ 42/ 43
WCDMA:B1/ 5*/ 8
Cellular Band
5G:
SA: DL : 4.67Gbps, UL: 1.25Gbps;
NSA: DL : 3.74Gbps(LTE 1.4Gbps+NR 2.3Gbps)
UL:835Mbps(LTE 211Mbps+NR 625Mbps)
4G:
DL: 1.6Gbps, UL: 211Mbps

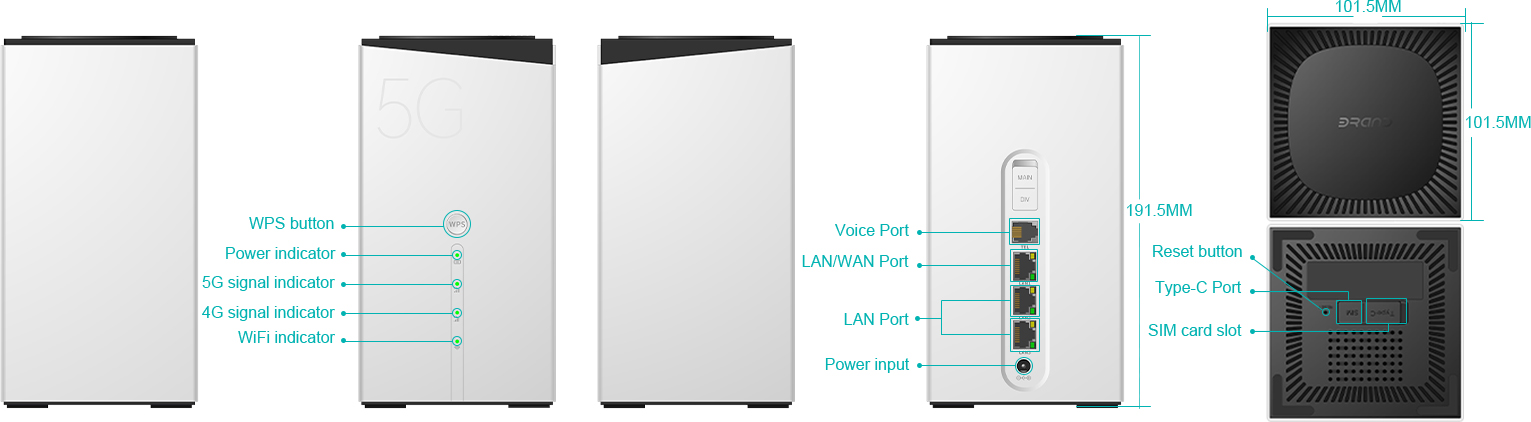

LED
Power/5G signal /4G signal /WiFi
Interface
3xRJ45,1xRJ11
Button
1*WPS/MESH+1*RESET
Size
191.55mm*101.55mm*101.55mm (could be customized.)

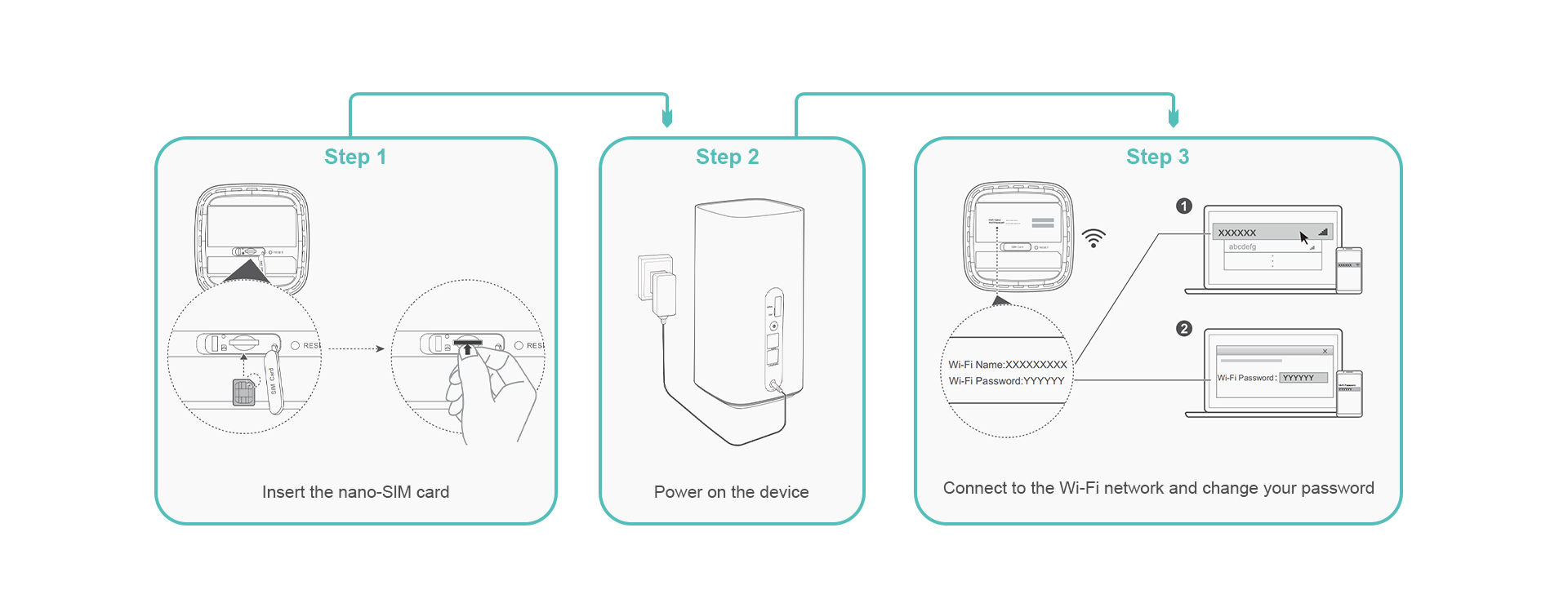

How to connect your CPE?

Compatibility worry-free. Simply insert the nano-SIM card into your current CPE and you can enjoy WiFi for your entire home with a few simple steps.

Which CPE is right for you?

Enjoy high-speed internet in your Life.

Talk to us >

KT-R2A

CPU

MediaTekT750

5G

SA: DL : 4.67Gbps, UL: 1.25Gbps

WIFI6

802.11ax,
Up to 4.67Gbps

1G + 1 G

1GB RAM + 1GB ROM

Full specs→

KT-R4A

CPU

MTK900

5G

NSA NR:Downlink/Uplink up to 3.5Gbps/700Mbps

WIFI6

802.11ax,
Up to 3.5Gbps

2G + 8 G

2GB RAM + 8GB ROM

Full specs→

KT-R6A

CPU

MTK 6769

4G

LTE:Downlink/Uplink up to 300Mbps/50Mbps

WIFI5

802.11ac
2.4GHz & 5GHz Dual-Band

3G + 8 G

3G+8G or above

Full specs→
