Basic Functions, Better Performance

Android 11

Dual SIM card slots

2G/3G/4G

2.4G/5G WiFi5 802.11ac

Bluetooth 5.0

4GB+64GB/6GB+128GB
(Optional)

MediaTek 6762

LCD 4-inch IPS

QR / bar code scanner(optional)

Corning GG3 reinforced glass cover

NFC/Magnetic(optional)

Flash Charge

Android 4-inch PDA with Keyboard KT-KP36

- 4”ultra-high definition screen shows display, 15mm ultra-thin fuselage, enables a faster collection and processing of data and the power to multi-task with greater efficiency.

- MediaTek 6762 chipset, faster data transfer speeds, pda with keyboard dedicated GPS + 4G LTE cellular data, WiFi+BT5.0.

- IP65 sealing and 1.5 meters drop resistance, it was engineered to survive drops, shocks, rain, vibration, dust, liquid and more industrial quality.

- Full keypad mobile barcode scanner embedded market-leading Newland CM60 scan engine,1D/2D Barcode Reader and RFID, certified by CE/FCC/CCC/ROHS.

- Replaceable 5000mAh large capacity battery, 33w -fast flash charging experience. Full Keypad PDA can be operated in temperatures from -21°C to 60°C.

Efficient and Convenient Data Transmission Modules

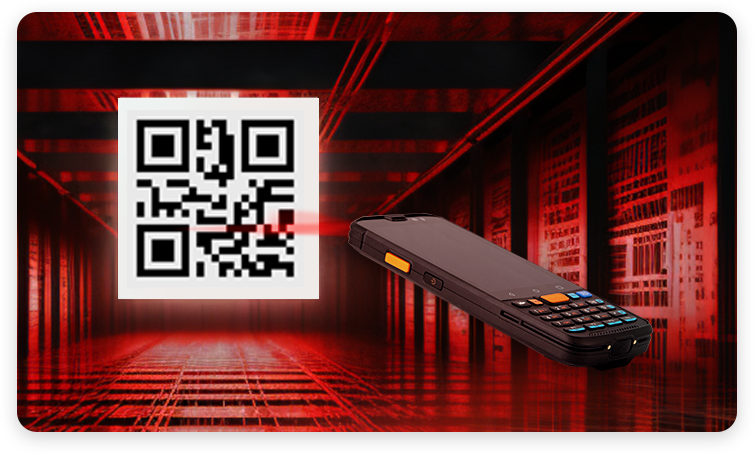

High-speed Scanning Module

- Supports the integration of 2D Newland CM60 scanning modules, with scanning distances up to 20 cm
- Scanning performance is stable, with high accuracy in reading barcodes and QR codes

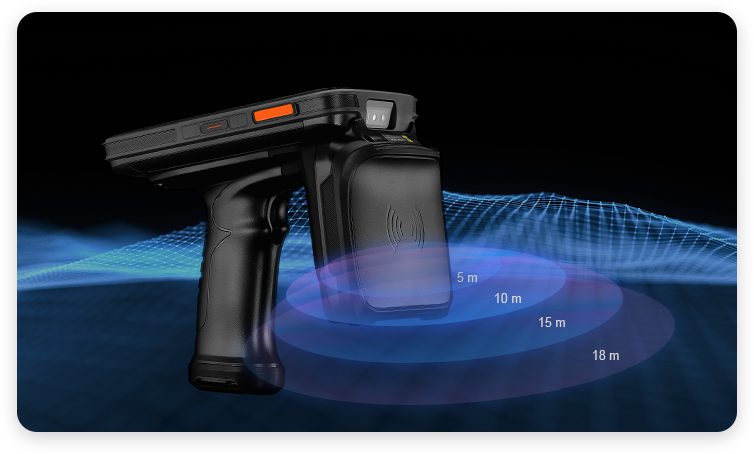

RFID Tag Collection

- Optional integration of UHF RFID modules, with reading distances up to 18 meters
- Supports mixed barcode and RFID reading to improve collection efficiency

NFC Module

- Built-in 13.56MHz NFC module
- Supports fast identification and transmission over short distances
- Facilitates employee attendance punch in

Slim Body for Comfortable Grip

Keypad PDA only15mm, which could bring new comfortable grip, easy to hold all day

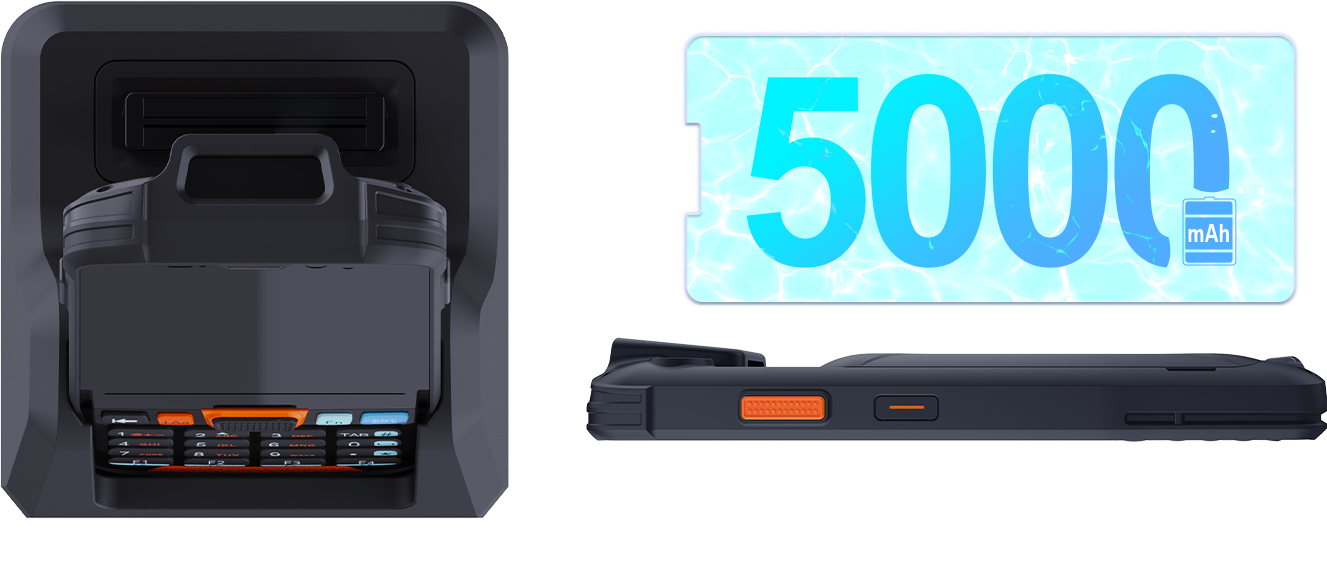

33W Flash Charging Experience Fast to Senseless

Low-power chip and system optimization, keypad PDA is efficient and low consumption,
5000mAh battery within 2 hours fast full to enhance the overall battery life.

Super Configuration,
One Step Faster

MediaTek Octa-core(8 core) 12nm high-performance processor, qwerty pda with Android™ 11 system, astonishing computing speed with lower power consumption, faster process processing.

Widely applicable to a variety of application scenarios

The Qwerty PDA KT-KP36 helps to digitize logistics sorting operations. Goods can be quickly scanned on the conveyor belt.

Industrial Grade Process to Create A Solid Body

-IP67 Dustproof and waterproof

-1.5m Anti-drop test

-1000 Times drum drop

Powerful Secondary Development Support

KINGTOP PDA products and SDK support are the best choice for your mobile office and intelligent management needs.

Optional Accessories

pda handheld device

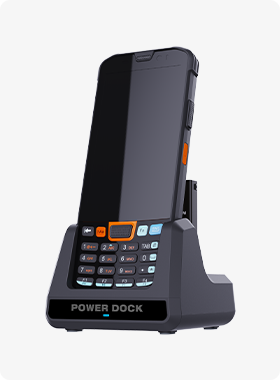

Cradle

Mobile device management

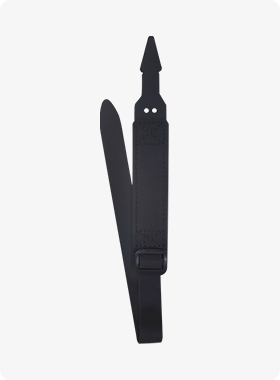

Hand strap

Mobile device management

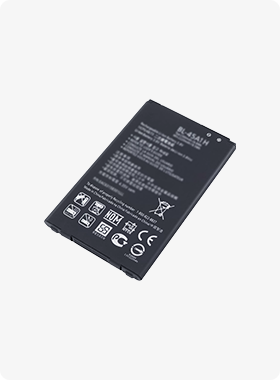

Battery

PRODUCT TECHNICAL SPECIFICATIONS

Operating System
Android™11.0
Platform
CPU:Octa-core 2.0 GHz(MTK6762)/Quad-core 2.0Ghz(MTK6761)
Memory: 4GB RAM+64GB ROM
Expansion: Supports up to 256GB Micro SD card
Development support:
Programming Language: Java
Development API: iScan API (Scanning Development Kits), Device API (Device Management/Configuration Development Kits) Android Standard Interface
Development Tool: Eclipse/Android Studio
Camera
Front Camera: 5MP
Rear Camera: 13MP AF with flash
Communication
WLAN: IEEE802.11 a/b/g/n/ac/ax, 2.4G/5G dual-band
WWAN: 2G: GSM (B2 / B3 / B5 / B8)
3G: WCDMA (B1 / B2 / B4 / B5 / B8) TD-SCDMA (B34 / B39)
4G: FDD-LTE (B1 / B2 / B3 / B4 / B5 / B7 /B8 / B12 / B17 / B20 / B28A / B28B) TDD-LTE (B34 / B38 / B39 / B40 / B41)
5G: NR(N1/3/8/28/38/41/77/78/79)
Bluetooth:Bluetooth 5.0
GNSS: GPS/AGPS, GLONASS, BeiDou, Galileo
Basic Configuration:
Display: 4 inch IPS,HD+,800*480
Touch Panel: Multi-touch,IC:GT911
Battery: Removable 4000mAh battery
Certification
CE,FCC,CCC,ROHS

Applicable Scene

Which PDA is right for you?

Powerful device management tools.

Talk to us >        SAMPLE TEST >

KT-KP18

4G LTE / 5G

2.2 Gigabit Carrier Speed

5.7-inch

HD+,720*1440

5mp

5mp front, 13mp rear

4000mAh

Removable 4000mAh battery

Android™12.0

Android™12.0 System

Full specs→

KT-KP26

4G LTE / 5G

2.2 Gigabit Carrier Speed

6-inch

HD+,720*1520

8mp

8mp front, 48mp rear

5000mAh

Removable 5000mAh battery

Android™11.0

Android™11.0 System

Full specs→

KT-KP36

4G LTE

1Gigabit Carrier Speed

4-inch

HD+,720*1440

5mp

5mp front, 13mp rear

5000mAh

Removable 5000mAh battery

Android™11.0

Android™11.0 System

Full specs→
