Android 11
5G Mobile Hotspots KT-M4A
High-Speed Networking Access, Anytime Anywhere, Without the Fear of Power Challenges
What makes Kingtop MIFI Different?
Powerful 5G Performance
MTK Dimensity 900
High-Speed Internet Access
Wi-Fi 6 standard
Thoughtfully Designed for
Portability 160g only
Supports simultaneous access of 16 devices
Extended Battery Life
24 hours of typical usage
Fast connect at anytime and anywhere
Stable Connection,
Multi-Device Sharing
The KT-M4A can support the connection of up to 16 devices simultaneously, without worrying about network congestion.

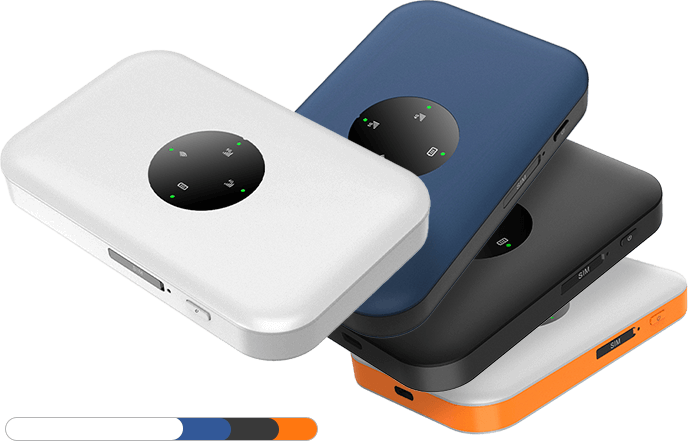

Personalize Your Tech
with KingTop
Pick a color, make it yours. KingTop gives you the power to customize the look of your devices. Effortless style meets top-notch performance.
Rich scenarios to enjoy network
Product Technical Specifications
Operating System
Platform
Chipset : MediaTek 900,MTK6877 Without NSA 5G mold.
CPU:Nanometer process,2A78(2.4GHz)+ 6A55 (2.0GHz)
Memory: LPDDR4X 2GB RAM+EMMC 32GB ROM
WIFI : MT6635 supporting Wi-Fi 6 standard
BT : Bluetooth 5.1, optional
CPU:Nanometer process,2A78(2.4GHz)+ 6A55 (2.0GHz)
Memory: LPDDR4X 2GB RAM+EMMC 32GB ROM
WIFI : MT6635 supporting Wi-Fi 6 standard
BT : Bluetooth 5.1, optional
LED
LED ：1*5G signal, 1*4G signal, 1*Wifi, 1*Power
WIFI
Bands : 2.4G, 5.8G, DBSC(2*2), DBDC（1*1）
Protocal : 802.11 a/b/g/n/ac/ax
Throughput:
802.11a：Up to 54Mbps
802.11b：Up to 11Mbps
802.11g：Up to 54Mbps
802.11n：Up to 300Mbps
802.11ac:Up to 866Mbps
802.11ax:Up to 1201Mbps
Protocal : 802.11 a/b/g/n/ac/ax
Throughput:
802.11a：Up to 54Mbps
802.11b：Up to 11Mbps
802.11g：Up to 54Mbps
802.11n：Up to 300Mbps
802.11ac:Up to 866Mbps
802.11ax:Up to 1201Mbps
Interface
SIM card : single SIM card, hot plugging supported
USB : TYPE-C(USB2.0)
Charge : TYPE-C, 5V/2A
USB : TYPE-C(USB2.0)
Charge : TYPE-C, 5V/2A
Polymer Battery
4200 mAh polymer battery

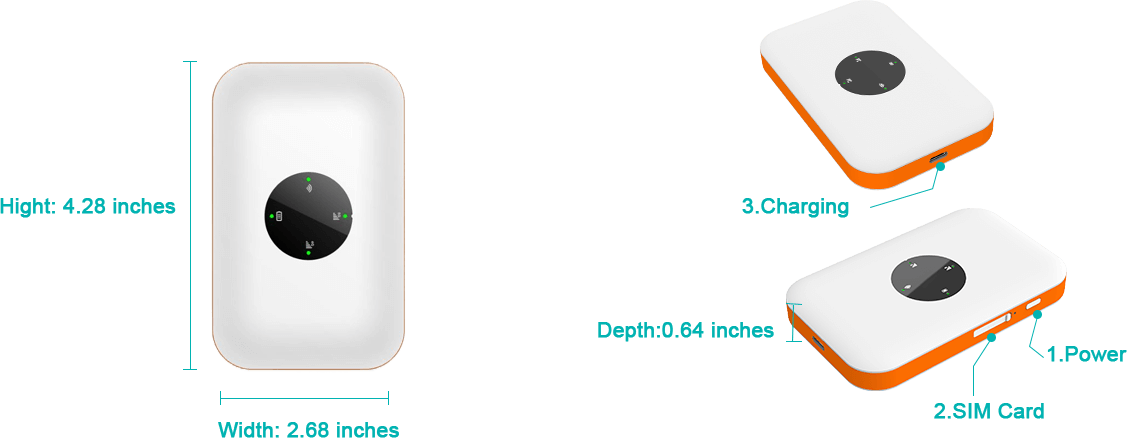

Size
108.7 x 68.2 x 16.2 mm（could be customized）
Scan QR code to log in the setting Web page
Scan QR code to log in the setting Web page, get connected, and customize your wifi hotspot’s settings in a snap.
And, the intuitive screen on the device itself is clear and easy to navigate so that you can quickly monitor your
Wi-Fi connections, identify your WiFi name/password, and more.
