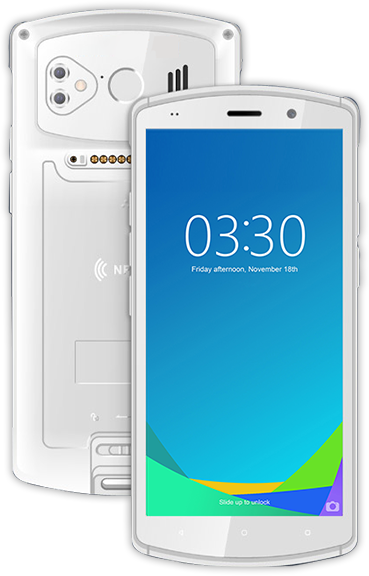

The Best Partner of Medical Staff
Efficient/Durable

Super Performance with MediaTek Dimensity 900 6nm Dual-band WiFi 4G/5G, High-Speed Transmission, Supports WiFi6, Meeting All Hospital Needs.

Basic Functions, Better Performance

Android 12

Dual SIM card slots

2G/3G/4G/5G

2.4G/5G WiFi6 802.11ax

Bluetooth 5.1 +BLE

4GB+64GB /6GB+128GB/8GB+256GB(Optional)

MediaTek Dimensity 900

LCD 5.7-inch IPS

QR / bar code scanner(optional)

Corning GG3 reinforced glass cover

NFC/Magnetic(optional)

Biometric Readers

Robust Structure / Sophisticated Performance with Multiple Outputs

Equipped with a high-performance octa-core 2.4GHz processor, it swiftly enables a new model of interaction between doctors and between doctors and patients. This includes patient information identification and collection, bidirectional referrals, remote collaboration, and more, helping doctors improve clinical work efficiency.

Medical-Grade Protective Casing: Corrosion-Resistant and Easy to Clean

Whether it's medical solutions, alcohol, or hydrogen peroxide, the casing resists corrosion and wear, significantly extending the device's lifespan.

5G Core: Full Signal Strength

With 5G WiFi support, it offers fast roaming capabilities, meeting the rapid needs of hospital APs. It's easy to operate, making mobile healthcare networks smoother, more convenient, and faster!

Professional High-Speed Scanner

Designed for medical scenarios where barcodes are often curved, wrinkled, or appear on wristbands and infusion bags, this scanner responds in milliseconds without needing to flatten the barcode.

Practical and Thoughtful Features: Single-Touch Convenience

Designed specifically for healthcare professionals, the KP18 offers features like one-touch intercom, one-touch WiFi connection, and fingerprint login, significantly enhancing the efficiency of medical staff.

IP67 Protection

The device is IP67 rated, withstanding drops from 1.2 meters onto concrete. Dual-color injection molding minimizes the risk of screen and internal component damage from falls.

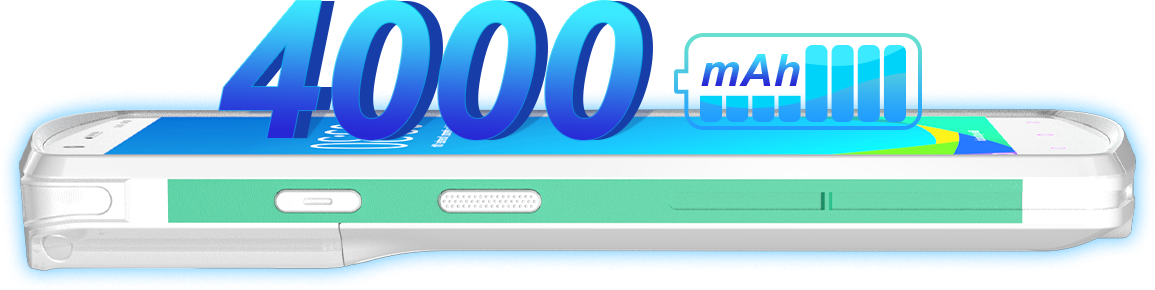

2-Hour Quick Full Recharge

Extended battery life with detachable battery handle, supporting battery replacement with the handle:
hardware and software security protections; low-power system designed.

24 Hours

Battery life with charging&using

7-10 Hours

Last up to 7-10 hours after the battery is fully charged

2 Hours

Flash charging can be fully charged within 2 hours

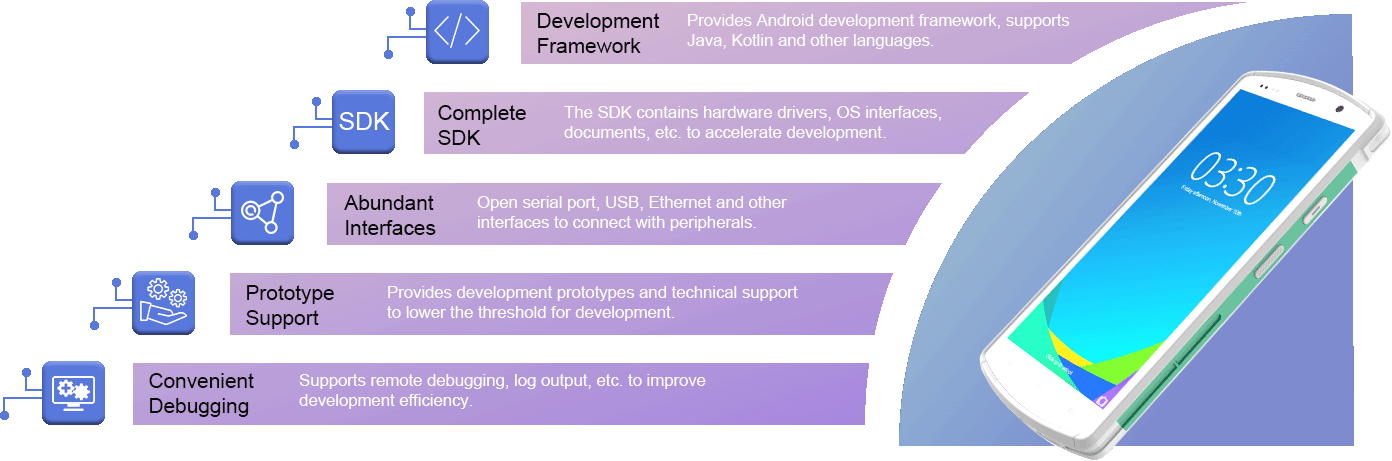

Powerful Secondary Development Support

KINGTOP PDA products and SDK support are the best choice for your mobile office and intelligent management needs.

Optional Accessories

Hand strap

Cradle

Spare Battery

Shell

PRODUCT TECHNICAL SPECIFICATIONS

Operating System

Android™12.0

Platform

CPU：5G(MTK900)
Memory: 4GB RAM+64GB ROM
Expansion: Supports up to 256GB Micro SD card

Development support:

Programming Language: Java
Development API: iScan API (Scanning Development Kits), Device API (Device Management/Configuration Development Kits) Android Standard Interface
Development Tool: Eclipse/Android Studio

Camera

Front Camera: 5MP
Rear Camera: 13MP AF with flash

Communication

WLAN: IEEE802.11 a/b/g/n/ac/ax, 2.4G/5G dual-band
WWAN: 2G: GSM (B2 / B3 / B5 / B8)
3G: WCDMA (B1 / B2 / B4 / B5 / B8) TD-SCDMA (B34 / B39)
4G: FDD-LTE (B1 / B2 / B3 / B4 / B5 / B7 /B8 / B12 / B17 / B20 / B28A / B28B) TDD-LTE (B34 / B38 / B39 / B40 / B41)
5G: NR（N1/3/8/28/38/41/77/78/79）
Bluetooth:Bluetooth 5.1
GNSS: GPS/AGPS, GLONASS, BeiDou, Galileo

Basic Configuration:

Display: 5.7 inch IPS,HD+,720*1440
Touch Panel: Multi-touch,IC:GT911
Battery: Removable 4000mAh battery
