Kingtop PDA Barcode Scanner KT-KP26

Ultra-efficient 5G CPU, fearless higher challenge 6.2-inch HD+ TFT sreen |Octa-core@2.4GHz

Learn more >

Basic Functions, Better Performance

Android 11

Dual SIM card slots

2G/3G/4G/5G

2.4G/5G WiFi6 802.11ax

Bluetooth 5.1 +BLE

4GB+64GB /6GB+128GB/8GB+256GB(Optional)

MediaTek Dimensity 900

LCD 6.2-inch IPS

QR / bar code scanner(optional)

Corning GG3 reinforced glass cover

NFC/Magnetic(optional)

Biometric Readers

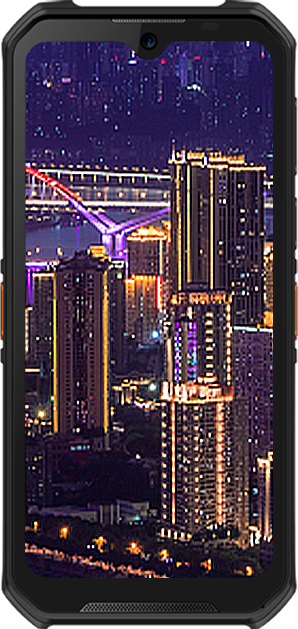

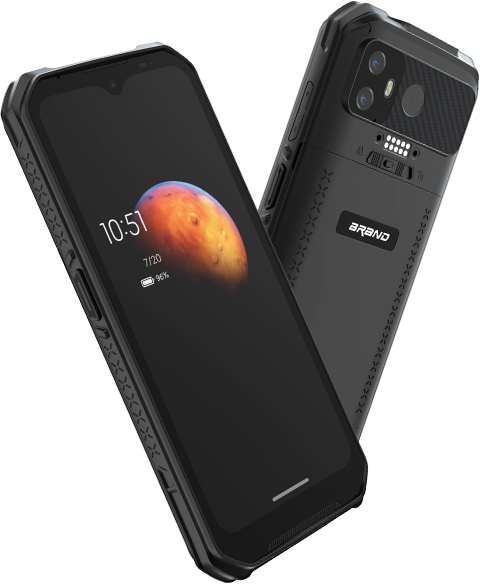

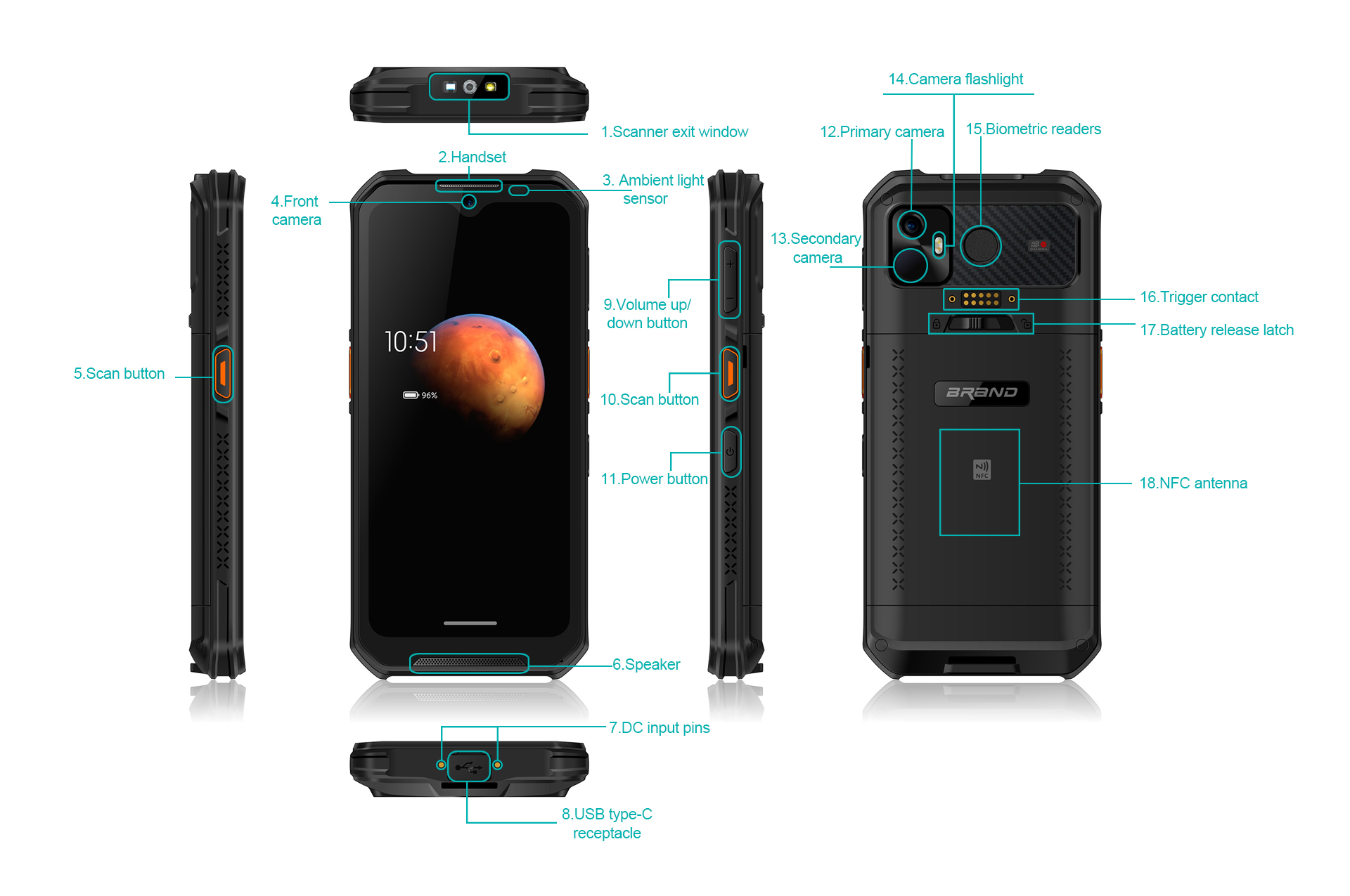

Android 6-inch Rugged Industrial Computer—KT-KP26

- 6”ultra-high definition screen shows display area sunlight readable display, enhancing readability in the toughest work environments.

- MediaTek 900 chipset, 5G cellular data, wifi-6 5G wireless connecting, faster data transfer speeds.

- Embedded market-leading Newland CM60 scan engine, 1D/2D Barcode Reader and NFC/RFID.

- Replaceable 5000mAh large capacity battery, supported QC charging and long battery life.

- IP67 sealing and 1.5 meters drop resistance, mobile management device KT-KP26 rugged tablet can be operated in temperatures from -21°C to 60°C

Efficient and Convenient Data Transmission Modules

High-speed Scanning Module

- Supports the integration of 2D Newland CM60 scanning modules, with scanning distances up to 20 cm
- Scanning performance is stable, with high accuracy in reading barcodes and QR codes

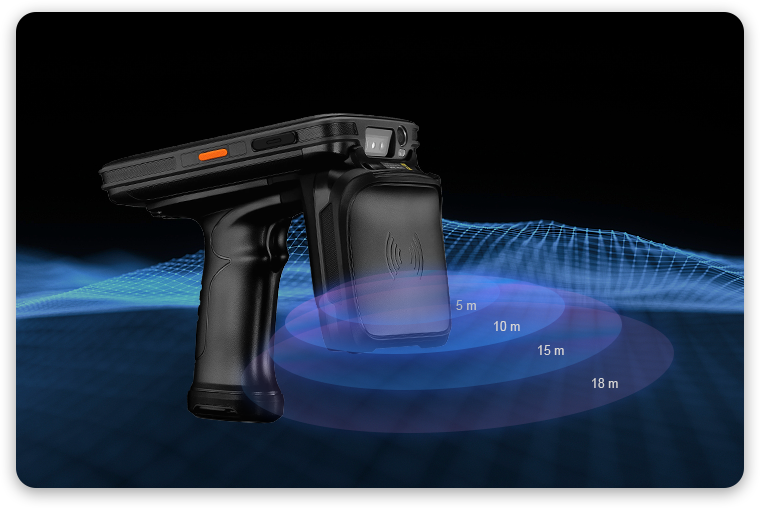

RFID Tag Collection

- Optional integration of UHF RFID modules, with reading distances up to 18 meters
- Supports mixed barcode and RFID reading to improve collection efficiency

NFC Module

- Built-in 13.56MHz NFC module
- Supports fast identification and transmission over short distances
- Facilitates employee attendance punch in

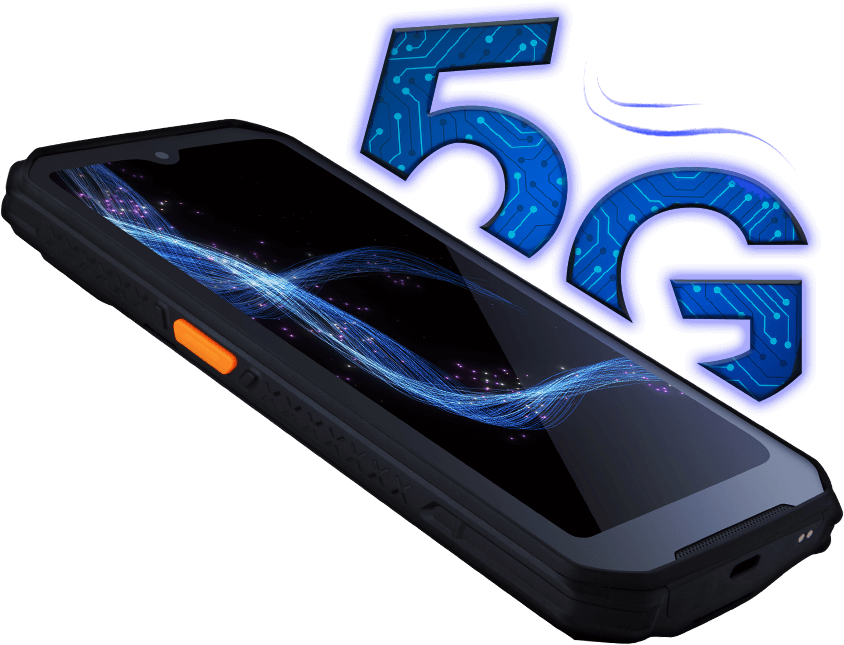

Dual-mode 5G enable easier to access the Internet

Android handheld scanner support 5G/4G/3G/2G wireless transferring(All Netcom), real-time data transmission, bring a smooth 5G experience. 4GHz/5GHz dual-band Wi-Fi data transfer rate increased by 90%, low-power Bluetooth BT 5.1+ for better information transmission.

5G Network for Faster and Stable Transmission

·MediaTek 900 chipset, 6nm design
·Octa-core 2*A78 @2.4GHz
·Dual-band Wi-Fi and dual SIM cards
·Fast 120Hz Displays
·Android 12.0

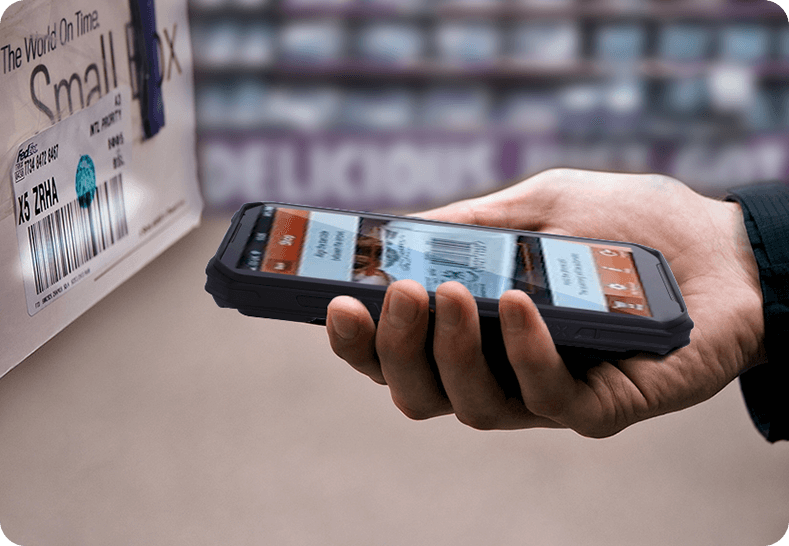

Efficient Scanning Performance

Using the industry's leading scanning engine to provide users with a faster, more efficient scanning experience.

1D barcode

2D barcode

33W ultra-fast flash charging, powerful to the end

Built-in 5000mAh large-capacity battery, combined with low-power consumption design to realize ultra-long battery life, at the same time,
support 33W fast charging, fast full charge, to provide effective protection for continuous operation.

24 Hours

Battery life with charging&using

7-10 Hours

Last up to 7-10 hours after the battery is fully charged

2 Hours

Flash charging can be fully charged within 2 hours

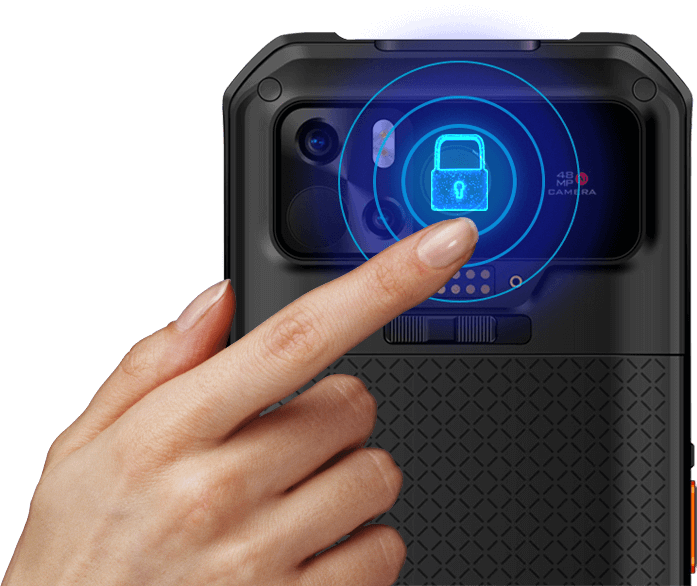

Biometric Unlocking Reinforces Information Security

Kingtop PDA Barcode Scanner adopt high performance fingerprint identification chip, quickly and accurately identify fingerprints, protect precious data information, and escort for enterprise information security.

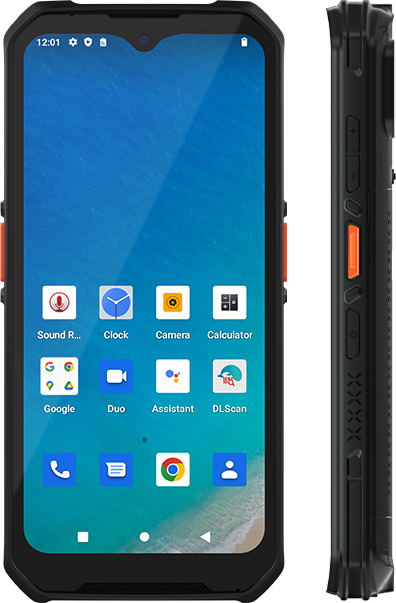

Advanced touch screen technology

6.2-inch HD touch captive screen, high sensitivity touch screen, support multi-touch, glove touch, with water operation and passive pen signature; selection of Corning Gorilla Glass cover, strengthened wear and scratch-resistant, so that the screen lasts a long time clearly.

6.2-inch HD touch capacitive screen

Multi-touch & Gloves support

1520 * 720 ultra-high resolution

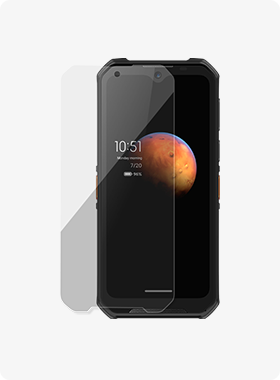

Corning Gorilla Glass cover

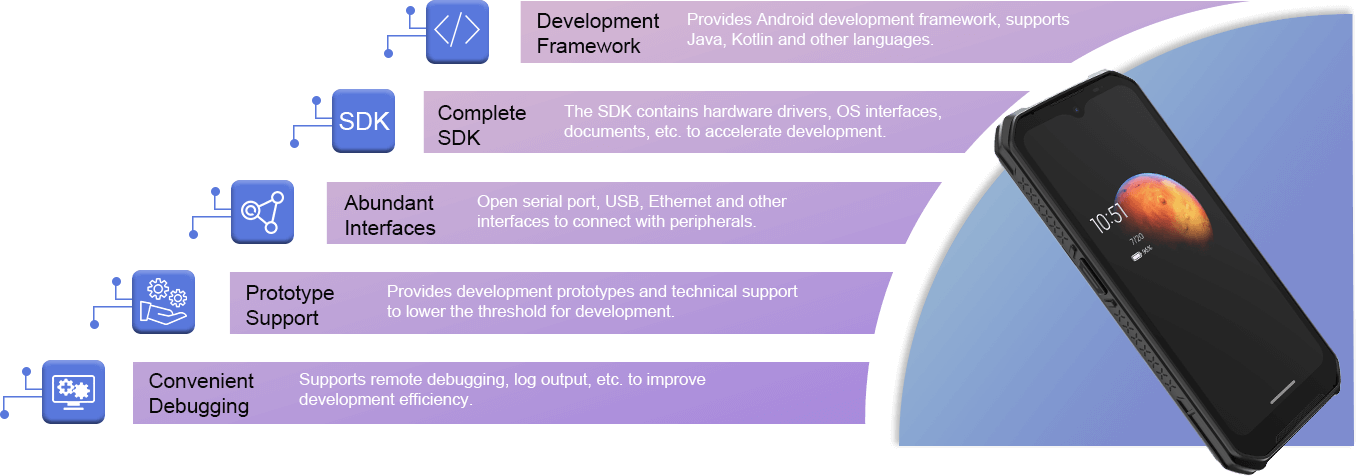

Powerful Secondary Development Support

KINGTOP PDA products and SDK support are the best choice for your mobile office and intelligent management needs.

Optional Accessories

Trigger

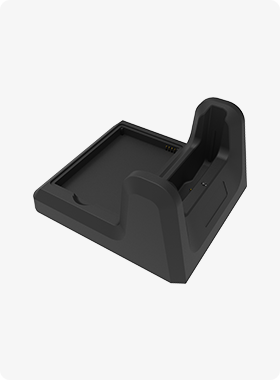

Cradle

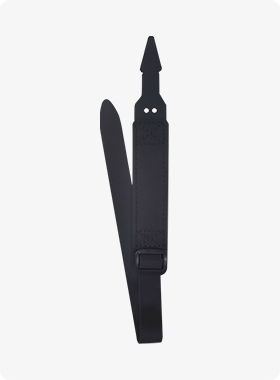

Hand strap

PRODUCT TECHNICAL SPECIFICATIONS

Operating System

Android™11.0

Platform

CPU: 5G(MTK900)/4G(MTK6762) Optional.
Memory: 6GB RAM+128GB ROM
Expansion: Supports up to 256GB Micro SD card

Development support:

Programming Language: Java
Development API: iScan API (Scanning Development Kits), Device API (Device Management/Configuration Development Kits) Android Standard Interface
Development Tool: Eclipse/Android Studio

Camera

Front Camera: 8MP
Rear Camera: 48MP AF with flash

Communication

WLAN: IEEE802.11 a/b/g/n/ac/ax, 2.4G/5G dual-band
WWAN: 2G: GSM (B2 / B3 / B5 / B8)
3G: WCDMA (B1 / B2 / B4 / B5 / B8) TD-SCDMA (B34 / B39)
4G: FDD-LTE (B1 / B2 / B3 / B4 / B5 / B7 /B8 / B12 / B17 / B20 / B28A / B28B) TDD-LTE (B34 / B38 / B39 / B40 / B41)
5G: NR（N1/3/8/28/38/41/77/78/79）
Bluetooth:Bluetooth 5.1
GNSS: GPS/AGPS, GLONASS, BeiDou, Galileo

Basic Configuration:

6.3 inch IPS,HD+,1080*2340
Touch Panel: Multi-touch,IC:GT911
Battery: Removable 5000mAh battery
