Basic Functions, Better Performance

Android 12

Dual SIM card slots

2G/3G/4G/5G

2.4G/5G WiFi6 802.11ax

Bluetooth 5.1

4GB+64GB /6GB+128GB/ 8GB+256GB (Optional)

MediaTek 900
/MTK6762

LCD 5.7-inch IPS

QR / bar code scanner(optional)

2 Corning GG3 reinforced glass cover

NFC/Magnetic(optional)

Biometric Readers

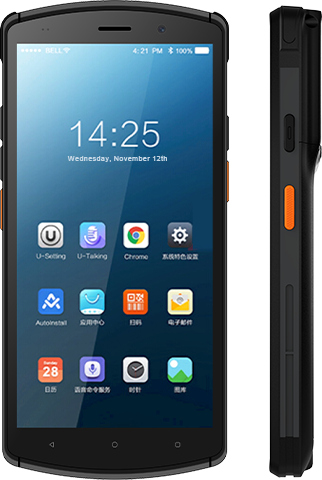

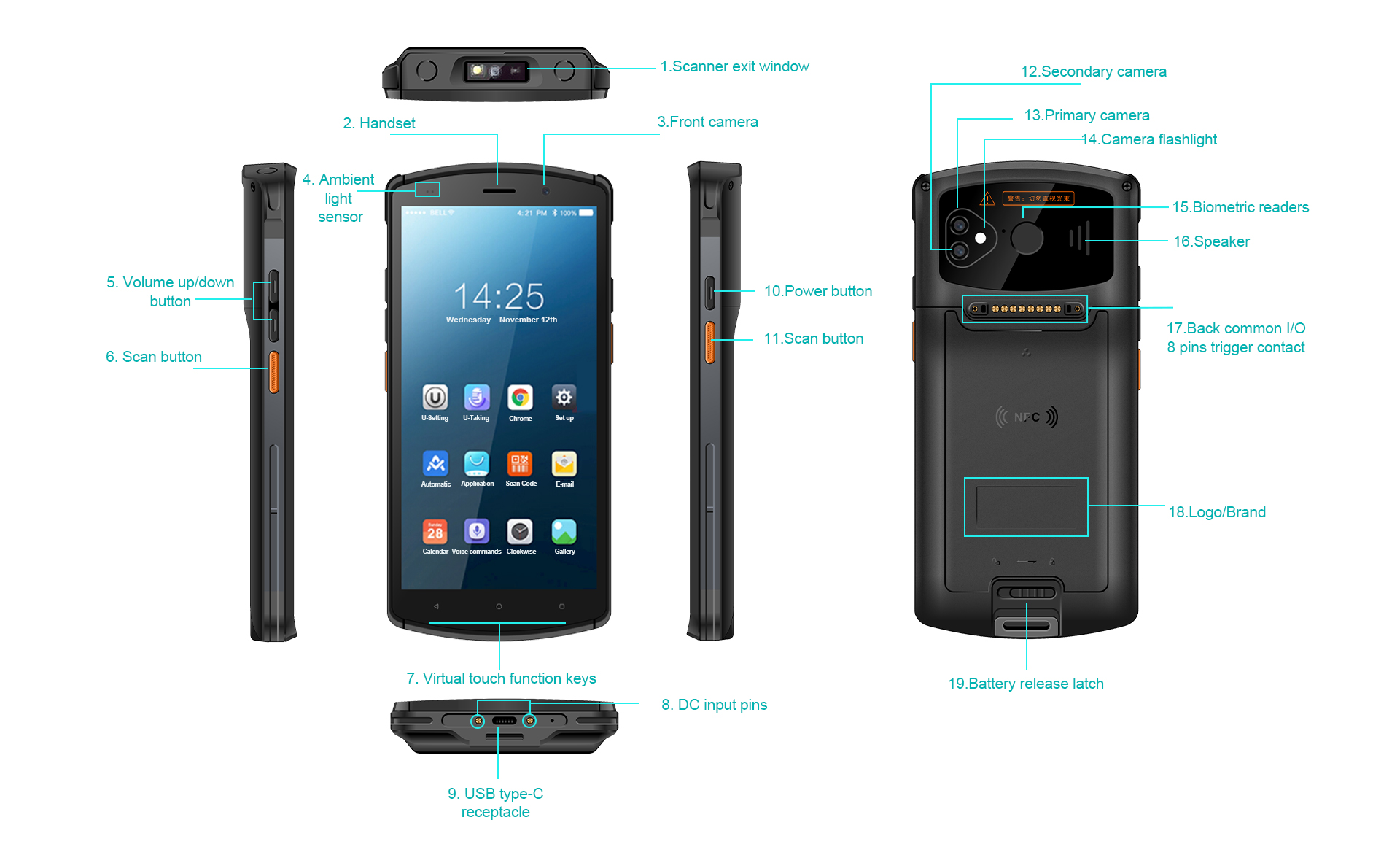

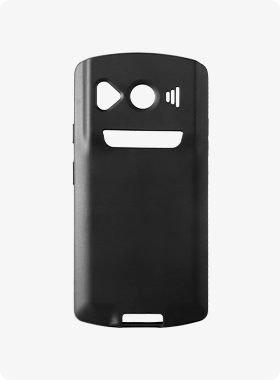

Android 5.7-inch Handheld Computer—KT-KP18

- 5.7”ultra-high definition screen shows display area, sunlight readable display, enhancing readability in the toughest work environments.

- Embedded market-leading scan engine Newland CM60, including dedicated GPS + 4G LTE cellular data, WiFi+BT, 1D/2D Barcode Reader and NFC/RFID.

- Replaceable 4000mAh large capacity battery, mobile management device supported QC charging and long battery life.

- Rugged mobile device can be operated in temperatures from -21°C to 60°C.

- IP67 sealing and 1.2 meters drop resistance, it was engineered to survive drops, shocks, rain, vibration, dust, liquid and more.

Wireless Transmission, Higher Efficiency

The KT-KP18 enables efficient and convenient wireless data transmission, meeting the needs of flexible remote working.

High-speed 5G Network

Supports high-speed data transmission over 5G networks, with fast upload and download speeds, greatly improving work efficiency.

Stable WiFi Connection

Equipped with WiFi 6 module for more stable and reliable wireless network connections.

Bluetooth 5.1 Transmission

The KT-KP18 is equipped with Bluetooth 5.1, enabling wireless connections with terminals and printing devices. Bluetooth 5.1 is more power efficient, delivers faster transmission speeds, and enables more stable and reliable connections.

NFC Identification

Built-in NFC module enables employee attendance punch in, fast item identification, and more.

Efficient and Convenient Data Transmission Modules

High-speed Scanning Module

- Supports the integration of 2D Newland CM60 scanning modules, with scanning distances up to 20 cm
- Scanning performance is stable, with high accuracy in reading barcodes and QR codes

RFID Tag Collection

- Optional integration of UHF RFID modules, with reading distances up to 18 meters
- Supports mixed barcode and RFID reading to improve collection efficiency

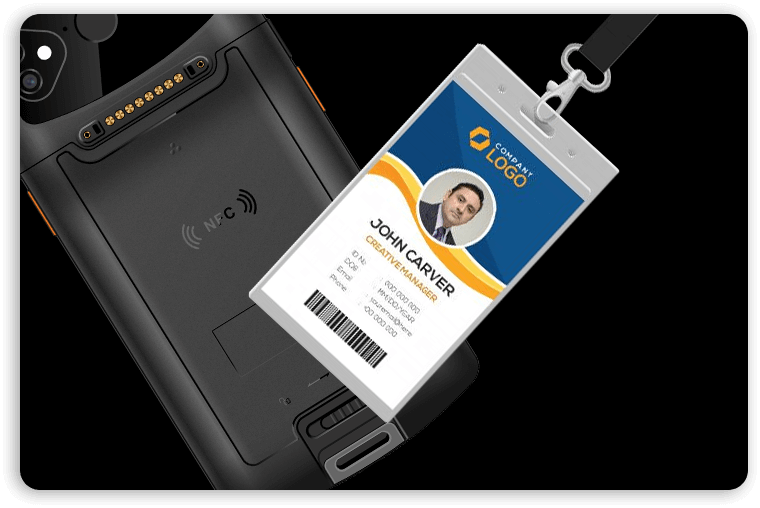

NFC Module

- Built-in 13.56MHz NFC module
- Supports fast identification and transmission over short distances
- Facilitates employee attendance punch in

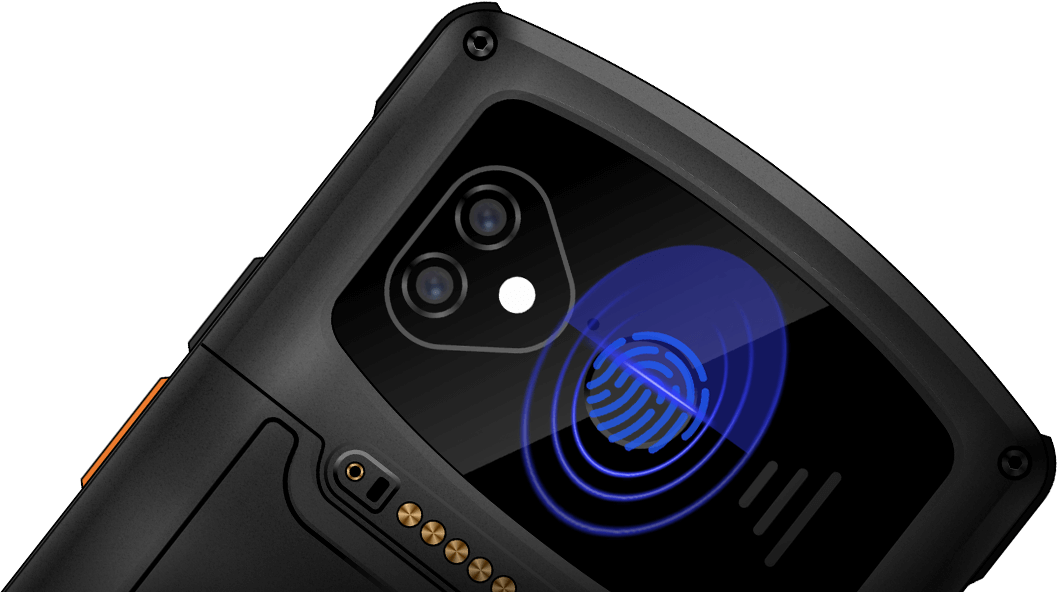

Biometric Unlock

Android mobile touch computer supports multiple fingerprint identification applications, more easily accessed. Fully meeting the requirements of various mobile applications of enterprises.

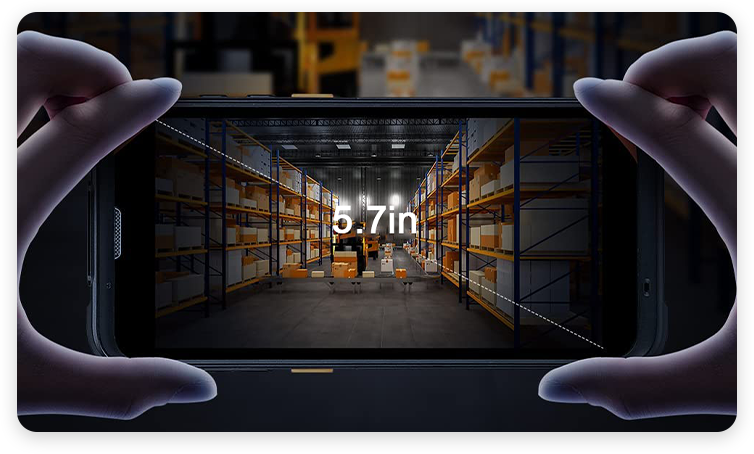

High Definition Screen Shows Display

1520 * 720 ultra-high resolution strong and weak light environment make work clear at a glance.

1520x720

HD+ Resolution

GG3

Corning Gorilla Glass

5.7'' IPS

Capacitive multi-touch

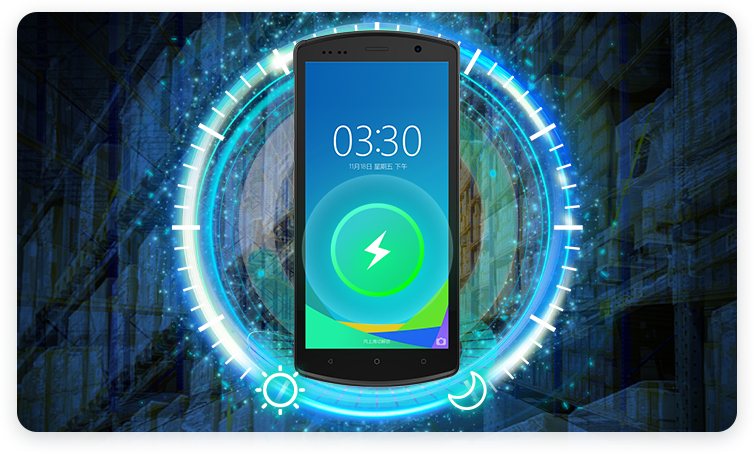

Power That Lasts All Day

Replaceable 4000mAh large capacity battery, full power can be restored quickly in 2 hours.

24 Hours

Battery life with charging&using

7-10 Hours

Last up to 7-10 hours after the battery is fully charged

2 Hours

Flash charging can be fully charged within 2 hours

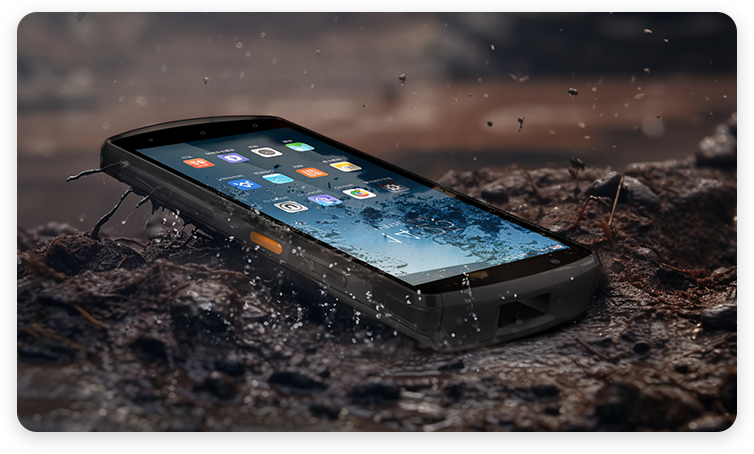

Industrial Quality

IP67 sealing and 1.2 m shock resistance are built within the rugged Android RFID mobile computer for every purpose.

IP67 Waterproof

1.2m Drop Resistance

IP67 Dustproof

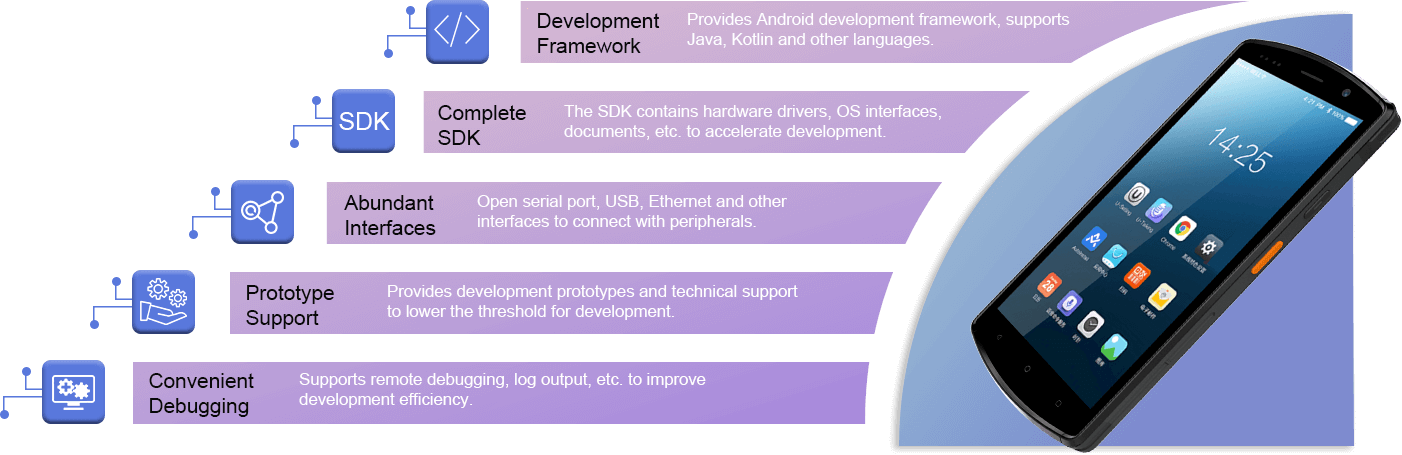

Powerful Secondary Development Support

KINGTOP PDA products and SDK support are the best choice for your mobile office and intelligent management needs.

Optional Accessories

Trigger

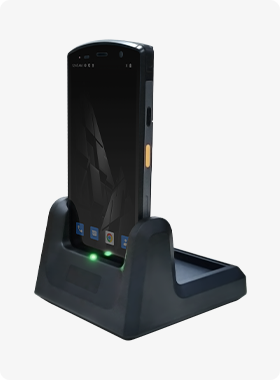

Cradle

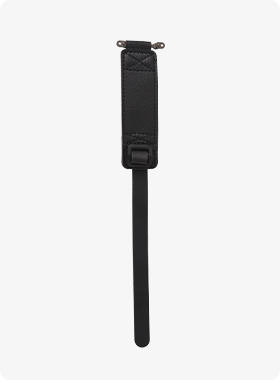

Hand strap

PRODUCT TECHNICAL SPECIFICATIONS

Operating System

Android™12.0

Platform

CPU：5G(MTK900)/4G(MTK6762) Optional.
Memory: 4GB RAM+64GB ROM
Expansion: Supports up to 256GB Micro SD card

Development support:

Programming Language: Java
Development API: iScan API (Scanning Development Kits), Device API (Device Management/Configuration Development Kits) Android Standard Interface
Development Tool: Eclipse/Android Studio

Camera

Front Camera: 5MP
Rear Camera: 13MP AF with flash

Communication

WLAN: IEEE802.11 a/b/g/n/ac/ax, 2.4G/5G dual-band
WWAN: 2G: GSM (B2 / B3 / B5 / B8)
3G: WCDMA (B1 / B2 / B4 / B5 / B8) TD-SCDMA (B34 / B39)
4G: FDD-LTE (B1 / B2 / B3 / B4 / B5 / B7 /B8 / B12 / B17 / B20 / B28A / B28B) TDD-LTE (B34 / B38 / B39 / B40 / B41)
5G: NR（N1/3/8/28/38/41/77/78/79）
Bluetooth:Bluetooth 5.1
GNSS: GPS/AGPS, GLONASS, BeiDou, Galileo

Basic Configuration:

Display: 5.7 inch IPS,HD+,720*1440
Touch Panel: Multi-touch,IC:GT911
Battery: Removable 4000mAh battery
