Android™14.0
Basic Functions, Better Performance
Android 14
Dual SIM card slots
2G/3G/4G
2.4G/5G WiFi6 802.11ac
Bluetooth 5.0 +BLE
6GB+128GB/8GB+256GB(Optional)
MediaTek Dimensity Octa-core
LCD 6.517-inch IPS
QR / bar code scanner(optional)
Corning GG3 reinforced glass cover
NFC/Magnetic(optional)
Biometric Readers

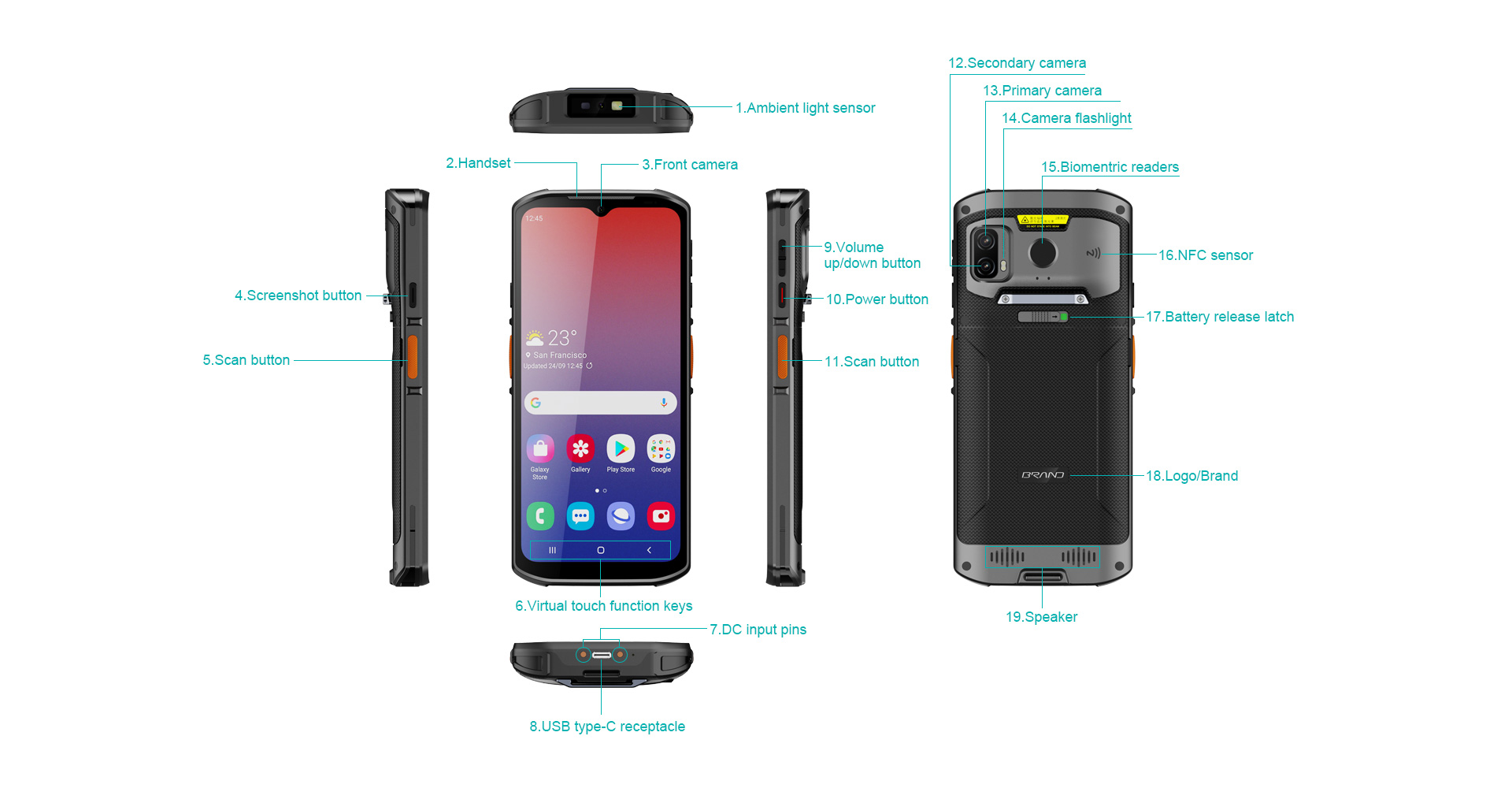

Android 6.517-inch mobile touch computer—KP68
-6.517'' high-definition screen, wider field of vision, a glance can browse more information, resolution: 720 * 1600;
-5500mAh battery, to protect the long time work, 65W fast charging, to meet the needs of all-weather operation;
-High-precision megapixel laser scanning engine, millisecond scanning speed, comprehensively improve work efficiency;
-IP67 protection level, 1.5m drop resistance, dare to face the harsh challenges, even in harsh operating environments can be used smoothly;
-Embedded NFC module, support ISO14443A/B, ISO15693 support ID card identification, membership card management, etc.

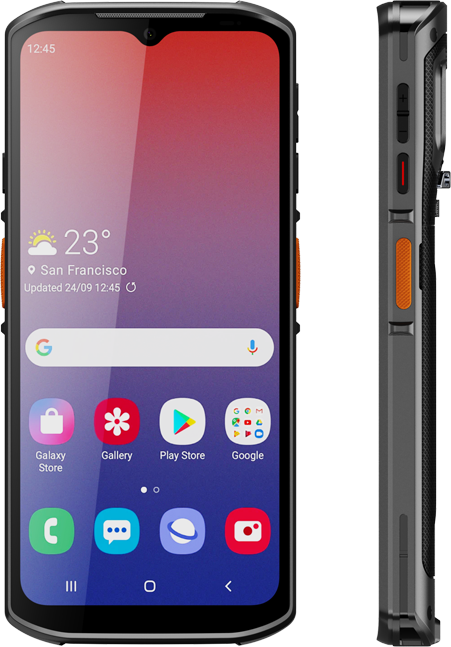

Ultra-high-definition large screen, the field of vision without boundaries
Kingtop Rugged PDA KT-KP68 is equipped with a large 6.517-inch HD screen with a wider field of view, allowing you to browse more information at a glance. The screen adopts HD+ INCELL IPS water drop screen, with a resolution of up to 720 x 1600, and supports ultra-high brightness settings, so that even under strong outdoor light, the screen content is still clearly visible.
Mightful Performance, Smooth Experience
Equipped with a high-performance 8-core processor with MediaTek 5G Octa Cores architecture, 2×2.4GHz A78 + 6×2.0GHz A55, together with a huge memory combination of 6GB RAM + 128GB ROM (optional 8GB + 256GB), the KP68 runs smoothly and multitasks with ease.
5G Octa-core processor
Android 13 operating system
Dual-band WIFI6 IEEE802.11ax
Smart NFC, convenient life
NFC Module
-Embedded NFC module, support ISO14443A/B, ISO15693 communication protocol, can achieve identity ID card recognition, membership card management and other functions.
-With one touch, it is easy to complete operations such as identity verification, payment and settlement, and membership information reading, making life more intelligent, convenient and efficient!

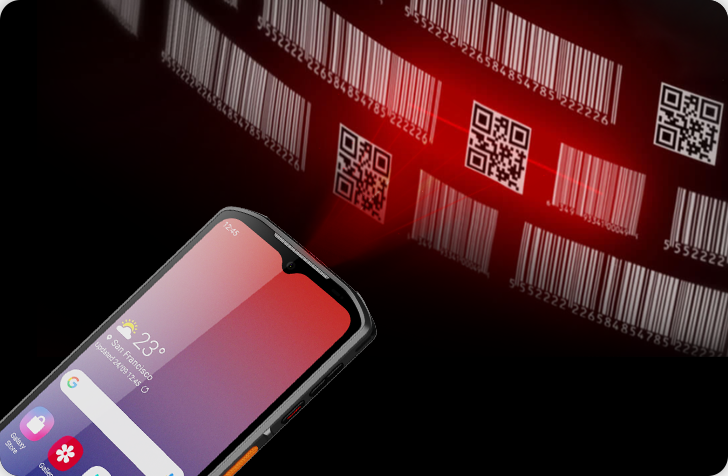

High-precision scanning, efficient operation
-Built-in high-precision megapixel laser code scanning engine, comprehensively improve work efficiency.
-With Newland CM60 scanning module, optical resolution ≥3mil, scanning angle 42°horizontal, 28°vertical, support a variety of code systems, easy to deal with a variety of complex scanning scenarios, so that work more efficient!
Strong battery life, worry-free all day
Kingtop KT-KP68 Rugged Android Computer equipped with a huge 5500mAh battery, providing a solid guarantee for long-time work. Supporting 65W fast charging technology, the fast charging speed can meet the needs of all-weather operation with only a short charging time.
36 Hours
Standby time
9-12 Hours
Using time
Strong protection, fearless of challenges
Kingtop handheld pda KT-KP68 with IP67 protection, full dust confinement, waterproof to a depth of 1 metre and drop resistance to 1.5 metres, the KP68 dares to face up to harsh challenges. Even in harsh operating environments, such as wet warehouses, bumpy transport routes or dusty construction sites, the KP68 can still be used smoothly and robustly, making the equipment always as new, durable and reliable!
1m waterproof
1.5m drop resistance
IP67 Dust-proof

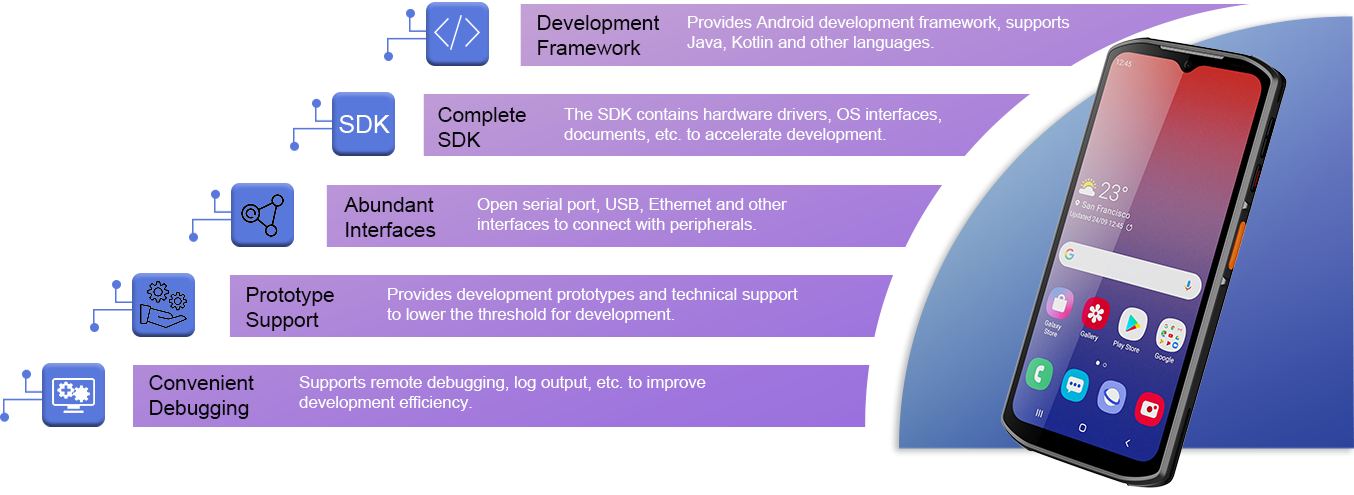

Powerful Secondary Development Support
KINGTOP PDA products and SDK support are the best choice for your mobile office and intelligent management needs.
PRODUCT TECHNICAL SPECIFICATIONS
Operating System
Platform
CPU: Octa-core 2.0 GHz
Memory: 6GB RAM+128GB ROM/8GB RAM+256GB ROM(Optioinal)
Expansion: Supports up to 256GB Micro SD card
Memory: 6GB RAM+128GB ROM/8GB RAM+256GB ROM(Optioinal)
Expansion: Supports up to 256GB Micro SD card
Development support:
Programming Language: Java
Development API: iScan API (Scanning Development Kits), Device API (Device Management/Configuration Development Kits) Android Standard Interface
Development Tool: Eclipse/Android Studio
Development API: iScan API (Scanning Development Kits), Device API (Device Management/Configuration Development Kits) Android Standard Interface
Development Tool: Eclipse/Android Studio
Camera
Front Camera: 8MP
Rear Camera: 16MP AF with flash+ 5MP FF
Rear Camera: 16MP AF with flash+ 5MP FF
Communication
WIFI6,WLAN: IEEE802.11 a/b/g/n/ac/ax, 2.4G/5G dual-band
WWAN: GSM：B2/B3/B5/B8 WCDMA :B1/B2/B5/B8
TDD-LTE：B34, B38, B39, B40, B41
FDD-LTE：B1, B3, B5, B7, B8, B20,B28A/B
5G: N1/N3/N8/N28/N38/N41/N77/N78/N79 Bluetooth:Bluetooth 5.1
GNSS: GPS/AGPS, GLONASS, BeiDou, Galileo L1+L5
WWAN: GSM：B2/B3/B5/B8 WCDMA :B1/B2/B5/B8
TDD-LTE：B34, B38, B39, B40, B41
FDD-LTE：B1, B3, B5, B7, B8, B20,B28A/B
5G: N1/N3/N8/N28/N38/N41/N77/N78/N79 Bluetooth:Bluetooth 5.1
GNSS: GPS/AGPS, GLONASS, BeiDou, Galileo L1+L5
Basic Configuration:
6.517 inch IPS,HD+,720*1600
Touch Panel:Corning GC3, fully laminated, 1.1mm, with AF anti fingerprint oil G+FF process supporting glove touch.
Battery: Removable 5500mAh battery
Touch Panel:Corning GC3, fully laminated, 1.1mm, with AF anti fingerprint oil G+FF process supporting glove touch.
Battery: Removable 5500mAh battery
Applicable Scene
KT-KP36
4G LTE
1Gigabit Carrier Speed
.png)
4-inch
HD+，800*480
.png)
5mp
5mp front, 13mp rear
5000mAh
Removable 5000mAh battery
Android™11.0
Android™11.0 System
KT-KP58
4G LTE
1 Gigabit Carrier Speed
5.5-inch
HD+，720*1440
5mp
5mp front, 13mp rear
5000mAh
Removable 4000mAh battery
Android™14.0
Android™14.0 System
KT-KP68
5G
2.2 Gigabit Carrier Speed
6.517-inch
HD+，720*1600
8mp
8mp front, 16MP+ 5MP rear
5500mAh
Removable 5500mAh battery
Android™14.0
Android™14.0 System
